Nuova webcam 3D stereo 2MP 2MP di arrivo 2MP 1920X1080 con doppio obiettivo Modulo telecamera USB per il sistema di controllo degli accessi

Nuova webcam 3D stereo 2MP 1920X1080 con doppio obiettivo. Modulo telecamera USB per controllo accessi. Prodotto di alta qualità direttamente dalla nostra fabbrica." "Acquista la nuova webcam 3D stereo 2MP 1920X1080 con doppio obiettivo direttamente dalla fabbrica. Modulo telecamera USB per il controllo accessi. Alta qualità garantita.
Request a Quote

Dettagli prodotti

Informazioni di Base.

Model No.
03-1031
Caratteristica
Taglia Mini
Dimensione sensore
1/2.7"
Telecomando
Senza telecomando
risoluzione massima
1920*1080p e 1920*1080p
dimensioni pixel
3.0μm*3.0μm
ampia gamma dinamica
86 db e 76 db
frequenza fotogrammi
30 fps
formato di output
Mjpg/Yuv
tensione
5 v.
corrente di esercizio
max 500 ma
interfaccia
usb2.0
Ttl
8,61 mm
fov
73,5 gradi
Origine
China
Capacità di Produzione
100kpcs/Month

Descrizione del Prodotto


Description:

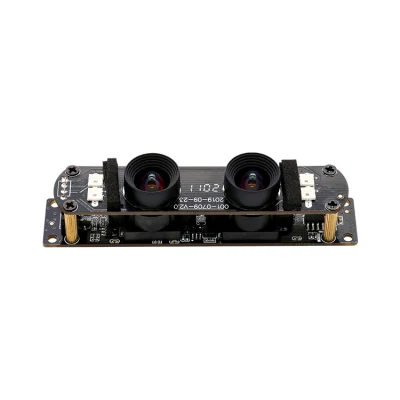

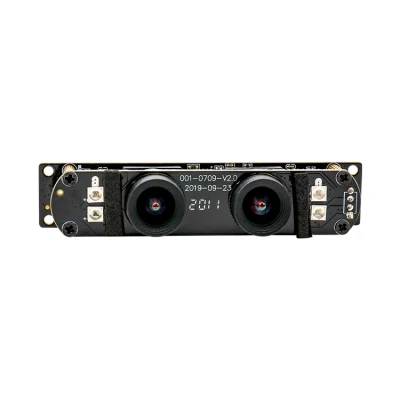

003-1031/002-0709 is a synchronized dual lens USB camera module, with 1/2,7" CMOS PS5268 & RX2719 sensor, the max resolution is 1920*1080P @30fps. Wide dynamic rage could reach 86db. Binocular dual lens camera can obtain depth range data without identifying the target, but the single lens camera must identifying the target first, that's why the dual lens cameras being used widely on some industrial like face recognition, intelligent traffic etc. Smaller error, and more accurate.



There are 2 DSP/CHIP and 2 USB cables, each chip controls its own sensor, so the 2 sensors work separately, you can choose to use PS5268 sensor only, or you can choose to use RX2719 sensor only, or you can use them at the same time; What's more, you can choose their resolution & frame rate as you want.

Products Images

New Arrival 2MP Stereo 3D Webcam 2MP 1920X1080 Dual Lens USB Camera Module for Access Control System
New Arrival 2MP Stereo 3D Webcam 2MP 1920X1080 Dual Lens USB Camera Module for Access Control System

SPECS:

Items Parameters
  IR Camera Color Camera
SENSOR RXSX2719 PS5268,wide dynamic color photosensitive chip
Maximum Effective Pixels 1920*1080 1928*1080
Lens Size 1/2.7 inch 1/2.7  inch
Data Format MJPG/YUY2 MJPG/YUY2
Pixel Size 3.0um*3.0um 1920*1080, 1280*720, 640*480, 320*240
Dynamic Range 76db Up to 86db
Lens FOV :D= 73.5° FOV :D= 73.5°
TTL :8.61MM TTL :8.61MM
Lens Construction:4E+IR(850nm Filter) Lens Construction:4E+IR(650nm Filter)
Mount :M8*P0.5mm Mount :M8*P0.5mm
Focusing Fixed focus Fixed focus
Frame Rate  1080P 30fps Max  30fps
Auto Control Saturation,Contrast, Acutance,White balance,Exposure Saturation,Contrast, Acutance,White balance,Exposure
Audio / /
Voltage DC 5V DC 5V
Working Current MAX 500mA MAX 500mA
USB Connector USB2.0 USB2.0
Storage Temperature -20ºC to +70ºC -20ºC to +70ºC
Working Temperature Change with environmental temperature 0ºCto +60ºC
System Compatibility 1,Windows XP(SP2,SP3),Vista ,7,8,10 1,Windows XP(SP2,SP3),Vista ,7,8,10
2,Linux or OS with UVC driver  2,Linux or OS with UVC driver


2D Drawing Image
New Arrival 2MP Stereo 3D Webcam 2MP 1920X1080 Dual Lens USB Camera Module for Access Control System
Key Features:

Synchronized dual lens camera module:

2MP camera module utilizing the disparity between the two lenses through algorithms, allow MACHINE to see the world as we do. Passive stereo vision designed for environment versatility and featuring long-range capabilities and high-resolution depth perception.Small outline 80*16mm for embedded application



Full HD 1080P Resolution:

The camera module adopt two 1/2.7" PS5268 WDR color sensor and RX2719 IR sensor. The max frame rate 1920*1080@ 30fps, full HD image.



Wide Dynamic Range:

This 2MP dual lens camera module support WDR, the Max wide dynamic range is about 86dB.WDR technology allows an imaging system to correct for the intense back light surrounding a subject and thus enhances the ability to distinguish features and shapes on the subject.



Best Universal Compatibility:

Dual lens camera module support USB 2.0 OTG,plug&play. USB camera is versatile for Skype, OBS, Zoom, Go To Meeting, Facebook LIVE, and YouTube Live streaming services etc. Widely works with Win XP/Vista/Windows 7/8,Windows 10 Linux with UVC.
New Arrival 2MP Stereo 3D Webcam 2MP 1920X1080 Dual Lens USB Camera Module for Access Control System
New Arrival 2MP Stereo 3D Webcam 2MP 1920X1080 Dual Lens USB Camera Module for Access Control System



Effect Shows
                                      RGB Camera                                                                                     IR Camera

New Arrival 2MP Stereo 3D Webcam 2MP 1920X1080 Dual Lens USB Camera Module for Access Control System
New Arrival 2MP Stereo 3D Webcam 2MP 1920X1080 Dual Lens USB Camera Module for Access Control System



Applications

Access Control System

ID Detection

Face Recognition

LED Display etc.

New Arrival 2MP Stereo 3D Webcam 2MP 1920X1080 Dual Lens USB Camera Module for Access Control System
New Arrival 2MP Stereo 3D Webcam 2MP 1920X1080 Dual Lens USB Camera Module for Access Control System
New Arrival 2MP Stereo 3D Webcam 2MP 1920X1080 Dual Lens USB Camera Module for Access Control System



Company Profile:
Dongguan Hampo Electronic Technology Co., Ltd, which was founded in 2014, is a manufacturer specialized in research, design and manufacture of audio and video electronic products. Located in Xintaiyang Industrial Park in Tangxia, Dongguan City, Guangdong,China. Hampo has buildings 58 and 26 as production base, covering 13,000 square meters. We fulfilled the progress from ID layout to structure and from electronic design to the whole process of SMT, focusing and assembly. Support OEM and ODM service.
New Arrival 2MP Stereo 3D Webcam 2MP 1920X1080 Dual Lens USB Camera Module for Access Control System

Certifications:                                                                                                                                                                New Arrival 2MP Stereo 3D Webcam 2MP 1920X1080 Dual Lens USB Camera Module for Access Control System


FAQ

Q: What choose dual lens camera module?
A:  Binocular dual lens camera can obtain depth range data without identifying the target, but the single lens camera must identifying the target first, that's why the dual lens cameras being used widely on some industrial like face recognition, intelligent traffic etc. Smaller error, and more accurate.

Q: Why choose camera module with WDR?
A: WDR is short for Wide Dynamic Range. The WDR technology is applied for viewing the image smoothly under the condition of severe light contrast. Broadly speaking, it stands for the possible range of certain changing object or an area the minimum value and the maximum value spans that can be seen. WDR allows an imaging system to correct for the intense back light surrounding a subject and thus enhances the ability to distinguish features and shapes on the subject.

Q: Are you manufaturer or trader?
A:
We are manufactuer, we have our own factory, SMT workshop, assembly workshop, R&D team and QC team. There are about 500 of employees in our factory, the monthly capacity is about 500k.
